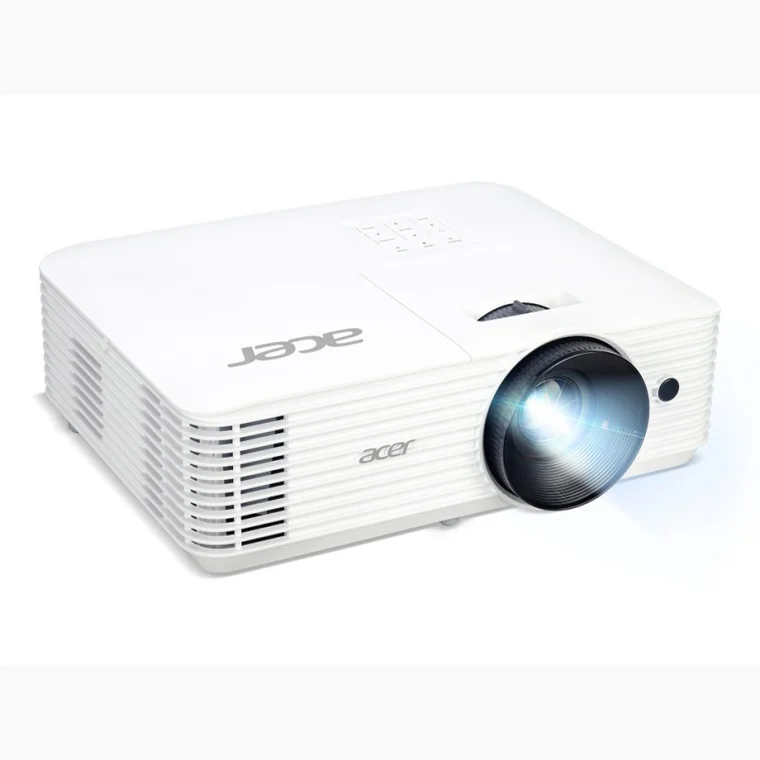

Acer M311 vs BenQ TH685P
What M311 does better (4) and where TH685P wins (2) — every spec side by side.
Dimensions
Size comparison
M311TH685P
| M311 | TH685P | Difference | |
|---|---|---|---|
| Height | 114 mm | 110 mm | +4 mm |
| Width | 313 mm | 312 mm | +1 mm |
| Depth | 240 mm | 225 mm | +15 mm |
| Weight | 2.7 kg | 2.8 kg | −0.1 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is M311 better than TH685P?
- Built-in speakers (total output)10 W vs 5 W2×
- Light source life6,000 h vs 4,000 h+50%
- Fan noise27 dB vs 35 dB+30%
- Weight2.7 kg vs 2.8 kg+4%
Why is TH685P better than M311?
- Resolution (on screen)1280 × 800 (WXGA) vs 1920 × 1080 (Full HD)
- Native panel resolution1280 × 800 (WXGA) vs 1920 × 1080 (Full HD)
Specifications
Side by side
| Picture | ||
| Resolution (on screen) | 1280 × 800 (WXGA) | 1920 × 1080 (Full HD) |
| Native panel resolution | 1280 × 800 (WXGA) | 1920 × 1080 (Full HD) |
| Display technology | DLP | DLP |
| Light source | Lamp | Lamp |
| Brightness (ANSI / ISO lumens) | 4,500 lm | — |
| Contrast ratio (dynamic / claimed) | 20,000:1 | — |
| 3D playback | Yes | — |
| Gaming | ||
| Maximum refresh rate | 120 Hz | 120 Hz |
| Lens & placement | ||
| Throw ratio | 1.49:1 | 1.13:1 |
| Throw ratio (zoomed in) | 1.67:1 | 1.46:1 |
| Throw type | Standard throw (1.0:1 and longer) | Standard throw (1.0:1 and longer) |
| Distance for a 100″ 16:9 image | 3.3 m | 2.5 m |
| Smallest image size | 30″ | 30″ |
| Largest image size | 300″ | 300″ |
| Optical zoom | 1.12× | — |
| Keystone correction | Yes | — |
| Automatic keystone correction | Yes | — |
| Sound | ||
| Built-in speakers (total output) | 10 W | 5 W |
| Smart & streaming | ||
| Wi-Fi | Yes | — |
| Connectivity | ||
| HDMI inputs | 1 | 1 |
| USB-C video input | — | Yes |
| USB port | Yes | Yes |
| Ethernet (LAN) | No | No |
| VGA input | Yes | Yes |
| Audio output | Yes | Yes |
| Battery, power & lifetime | ||
| Light source life | 6,000 h | 4,000 h |
| Light source life (eco mode) | 10,000 h | 10,000 h |
| Design & noise | ||
| Fan noise | 27 dB | 35 dB |
| Fan noise (eco mode) | 24 dB | 29 dB |
| Weight | 2.7 kg | 2.8 kg |
| Width | 313 mm | 312 mm |
| Height | 114 mm | 110 mm |
| Depth | 240 mm | 225 mm |
| Colours | White | White |
