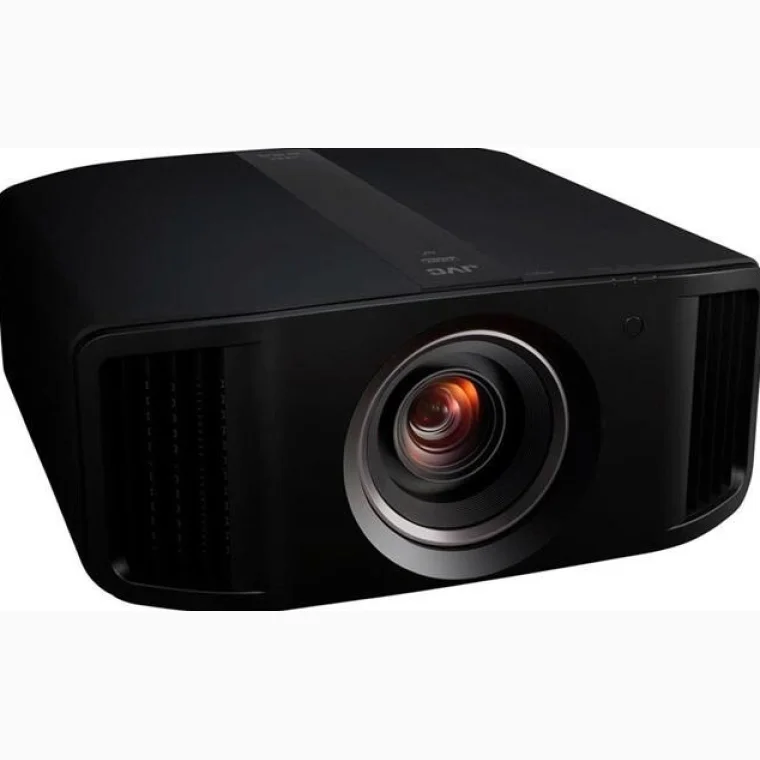

JVC DLA-N5B vs ViewSonic PX701HD
What DLA-N5B does better (7) and where PX701HD wins (5) — every spec side by side.
Dimensions
Size comparison
DLA-N5BPX701HD
| DLA-N5B | PX701HD | Difference | |
|---|---|---|---|
| Height | 234 mm | 108 mm | +126 mm |
| Width | 500 mm | 312 mm | +188 mm |
| Depth | 495 mm | 222 mm | +273 mm |
| Weight | 19.6 kg | 2.6 kg | +17 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is DLA-N5B better than PX701HD?
- Resolution (on screen)4096 × 2160 (DCI 4K) vs 1920 × 1080 (Full HD)
- Lens shiftVertical and horizontal vs None
- Contrast ratio (dynamic / claimed)40,000:1 vs 12,000:13.3×
- Native panel resolution4096 × 2160 (DCI 4K) vs 1920 × 1080 (Full HD)
- HDR supportYes · PX701HD: No
- Ethernet (LAN)Yes · PX701HD: No
- Optical zoom2× vs 1.1×+82%
Why is PX701HD better than DLA-N5B?
- Brightness (ANSI / ISO lumens)1,800 lm vs 3,500 lm+94%
- Weight19.6 kg vs 2.59 kg7.6×
- Audio outputNo · DLA-N5B: Yes
- Light source life4,500 h vs 5,000 h+11%
- Power consumption400 W vs 300 W+33%
Specifications
Side by side
| Picture | ||
| Resolution (on screen) | 4096 × 2160 (DCI 4K) | 1920 × 1080 (Full HD) |
| Native panel resolution | 4096 × 2160 (DCI 4K) | 1920 × 1080 (Full HD) |
| 4K method | Native 4K | — |
| Display technology | LCoS (SXRD / D-ILA) | DLP |
| Light source | Lamp | — |
| Brightness (ANSI / ISO lumens) | 1,800 lm | 3,500 lm |
| Contrast ratio (dynamic / claimed) | 40,000:1 | 12,000:1 |
| HDR support | Yes | No |
| 3D playback | Yes | Yes |
| Gaming | ||
| Maximum refresh rate | — | 120 Hz |
| Game / low-latency mode | — | Yes |
| Lens & placement | ||
| Throw ratio | — | 1.5:1 |
| Throw ratio (zoomed in) | — | 1.65:1 |
| Throw type | — | Standard throw (1.0:1 and longer) |
| Distance for a 100″ 16:9 image | — | 3.32 m |
| Smallest image size | — | 30″ |
| Largest image size | — | 300″ |
| Optical zoom | 2× | 1.1× |
| Lens shift | Vertical and horizontal | None |
| Autofocus | No | — |
| Keystone correction | — | Yes |
| Automatic keystone correction | — | No |
| Sound | ||
| Built-in speakers (total output) | — | 10 W |
| Connectivity | ||
| HDMI inputs | 2 | 2 |
| USB port | Yes | Yes |
| Ethernet (LAN) | Yes | No |
| VGA input | No | Yes |
| Audio output | No | Yes |
| Battery, power & lifetime | ||
| Power consumption | 400 W | 300 W |
| Light source life | 4,500 h | 5,000 h |
| Light source life (eco mode) | — | 20,000 h |
| Design & noise | ||
| Fan noise | — | 31 dB |
| Fan noise (eco mode) | — | 27 dB |
| Weight | 19.6 kg | 2.59 kg |
| Width | 500 mm | 312 mm |
| Height | 234 mm | 108 mm |
| Depth | 495 mm | 222 mm |
| Colours | — | White |
