XGIMIHome cinema projector

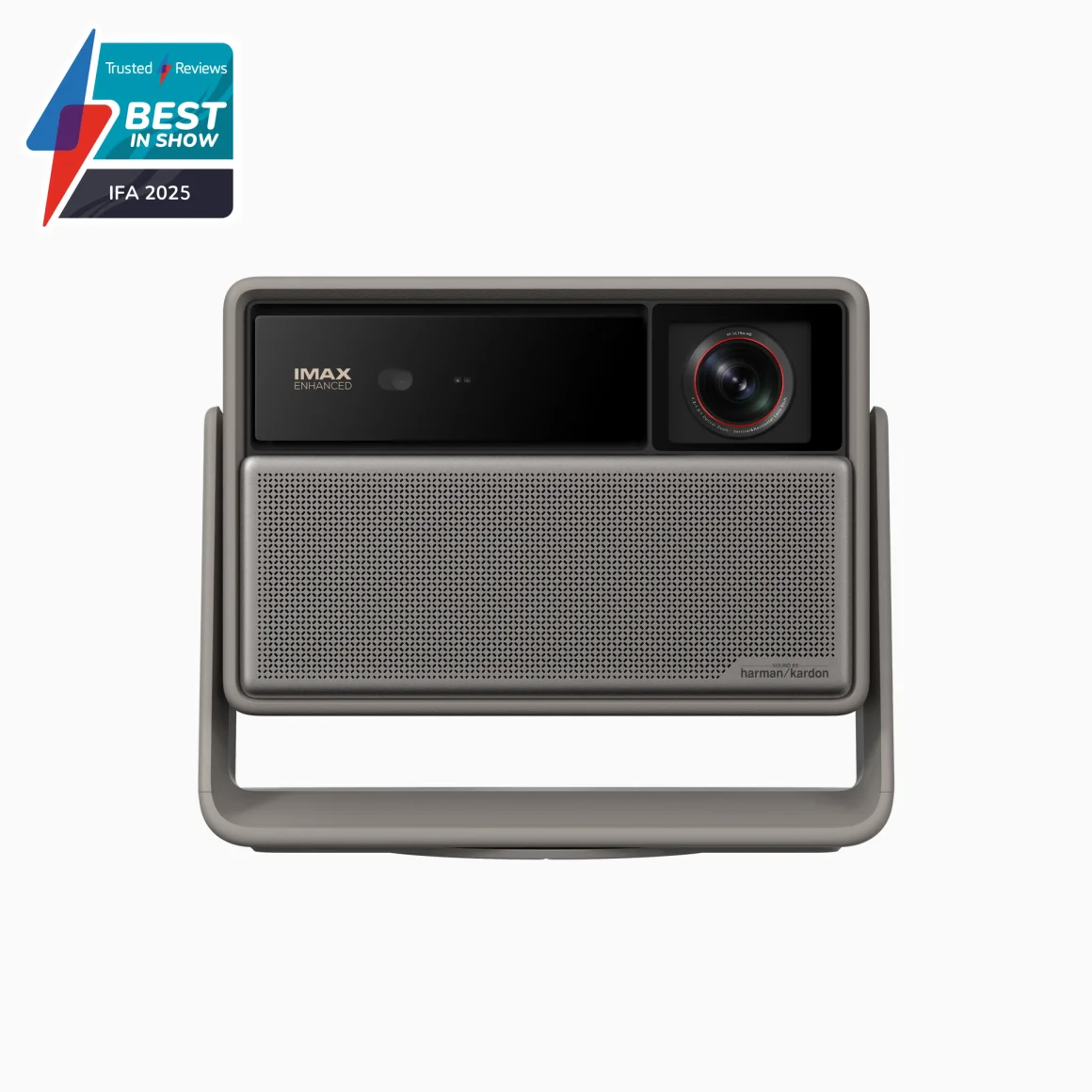

XGIMI Horizon 20 Max
XGIMI Horizon 20 Max is a home cinema projector released in October 2025. Key specs: resolution (on screen) 3840 × 2160 (4K UHD), 4k method 4K by pixel shifting, brightness (ANSI / ISO lumens) 5,700 lm, light source RGB triple laser.
9.6Score
Picture9.1
Gaming & inputs9.8
Setup & placement9.4
Smart features & sound8.0
Noise, lifetime & portability6.4
price rangeUS$2,900–3,700Reference price converted from GBP
- Released
- October 2025
- Brand
XGIMI- Popularity
- #518 of 767
3840 × 2160 (4K UHD)Resolution (on screen)
4K by pixel shifting4K method
5,700 lmBrightness (ANSI / ISO lumens)
RGB triple laserLight source
1.2:1Throw ratio
YesHDR support
Google TVSmart platform
24 WBuilt-in speakers (total output)
1 msInput lag
28 dBFan noise
4.9 kgWeight
Spec guide
How it ranks among home cinema projectors of 2025
Brightness (ANSI / ISO lumens) · 5,700 lmTop 3%
Built-in speakers (total output) · 24 WTop 11%
Input lag · 1 msTop 13%
Fan noise · 28 dBTop 43%
Weight · 4.9 kgBottom 21%
Compared with home cinema projectors released in 2025. Bars show the share of models it beats.
compared with other home cinema projectors
Why is Horizon 20 Max a good choice?
Brightness (ANSI / ISO lumens): 5,700 lmbetter than 95% of home cinema projectors
Input lag: 1 msbetter than 84% of home cinema projectors
Built-in speakers (total output): 24 Wbetter than 90% of home cinema projectors
Maximum refresh rate: 240 Hzbetter than 89% of home cinema projectors
Fan noise: 28 dBbetter than 70% of home cinema projectors
Specifications
Full specifications
- Native panel resolution
- 1920 × 1080 (Full HD)
- Brightness (ANSI / ISO lumens)
- 5,700 lm
- Contrast ratio (dynamic / claimed)
- 20,000:1
- HDR support
- Yes
- Dolby Vision
- Yes
- Colour gamut (BT.2020)
- 110%
- Motion interpolation (MEMC)
- Yes
- 3D playback
- Yes
Gaming
- Input lag
- 1 ms
- Maximum refresh rate
- 240 Hz
- Game / low-latency mode
- Yes
Lens & placement
- Throw ratio
- 1.2:1
- Throw ratio (zoomed in)
- 1.5:1
- Throw type
- Standard throw (1.0:1 and longer)
- Distance for a 100″ 16:9 image
- 2.66 m
- Smallest image size
- 40″
- Largest image size
- 300″
- Optical zoom
- 1.25×
- Lens shift
- Vertical and horizontal
- Autofocus
- Yes
- Keystone correction
- Yes
- Automatic keystone correction
- Yes
- Obstacle avoidance
- Yes
- Automatic screen fit
- Yes
Sound
- Built-in speakers (total output)
- 24 W
Smart & streaming
- Built-in smart platform
- Yes
- Netflix (officially licensed)
- Yes
- Wi-Fi
- Yes
- Bluetooth
- Yes
- AirPlay
- Yes
- Chromecast built-in
- Yes
- Internal storage
- 128 GB
Connectivity
- HDMI inputs
- 2
- HDMI eARC
- Yes
- USB port
- Yes
- Ethernet (LAN)
- No
- VGA input
- No
- Audio output
- Yes
Battery, power & lifetime
- Light source life
- 20,000 h
- Light source life (eco mode)
- 25,000 h
Design & noise
- Fan noise
- 28 dB
- Weight
- 4.9 kg
- Width
- 298 mm
- Height
- 249 mm
- Depth
- 190 mm
- Colours
- Grey
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
